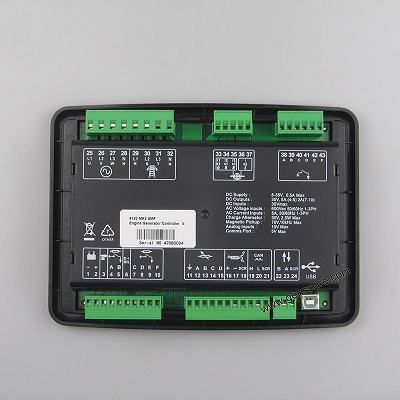

Generator Controller DSE6120MKII
Deep Sea 6120 Controller
Warranty: 1 Year
Gross Weight: 0.6 kgs
Stock Status: In stock
Generator Type: Diesel or Gasoline
Part No. : DSE
Replaced Brand: Deep Sea / DSE
Controller Type: AMF Generator Controller
Software: Compatible with DSE
Function: DSE 6120 Controller
Usage: Deep Sea Controller DSE6120
Compatible with: DSE AMF Controller DSE6120
Product Name: Deep Sea 6120 AMF Controller
Language: English
Compatible Gensets: Cummins,Perkins,Deutz,Caterpillar, Aksa, Volve, Marelli,
Mecc Alte, Marathon, WeiChai, ShangChai, YANAN, Kipor and many more Brands
DSE Deep Sea 6120 6120MKII DSE6120 DSE6120MKII Control Panel Controller for Diesel Genset Generator
AUTO AMF START CONTROL MODULES
The Brands mentioned here are for reference only, our parts can exactly replace the original ones.
How to choose a suitable Generator AMF Controller?
1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)
2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)
3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)
4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)
5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM
6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII
The Deep Sea DSE6120MKII Diesel Generator Controller for genset is an Auto Start Control Module and the DSE Deep Sea 6120 Controller for generator is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single gen-set applications. Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, Deep Sea 6120MKII control panel for genset will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.
DSE DSE6120MKII control panel for generator offer electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and offer a number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of application demands.
6120 DSE Controller can be easily configured using the DSE Configuration Suite PC software.
Selected front panel editing is also available for DSE6120 MKII Diesel Genset Controller.
KEY FEATURES of DSE6120MKII Diesel Generator Control Panel
• Back-lit text LCD display
• Front panel editing
• LED and LCD alarm indication
• Power Save mode
• CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
• PC and front panel configuration
• 6 Digital inputs
• 3 Analogue inputs
• 6 Outputs (4 configurable on Magnetic Pick-up/Alt., 6 configurable on CAN version)
• Configurable timers and alarms
• Alternative configuration
• Event Log (10)
• Remote Start input
• 3 Phase generator monitoring
• Current Monitoring and protection
• 3 Phase Mains (Utility) monitoring (DSE6120 only)
• Test button (DSE6120 only)
• Battery voltage monitoring
• Engine pre-heat
• Hours counter
• Comprehensive shutdown or warning on fault condition
KEY BENEFITS of deep sea 6120 diesel genset control panel
• Automatically transfers between mains (utility) and generator power (DSE6120 only)
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout
• Multiple engine parameters are monitored simultaneously
• Module can be configured to suit individual applications
• Compatible with a wide range of CAN engines
• Tier 4 engine support
• Uses DSE Configuration Suite PC software for simplified configuration
• IP65 rating (with optional gasket) offers increased resistance to water ingress
• Licence-free PC software
