Engine Actuator
Generator Actuator
Warranty: 1 Year
Stock Status: In stock
Usage: Generator Actuator
Compatible with: Engine Actuator
Product Name: Genset Actuator
Function: Diesel Generator Actuator
Diesel Gasoline Engine Genset Generator Actuator
We have Diesel Generator Actuator in our Regular Stock!
You just need to provide your Engine brand and engine model number, we will choose a suitable actuator.
The Brands mentioned here are for reference only, our parts can exactly replace the original ones.
Engine Actuators:

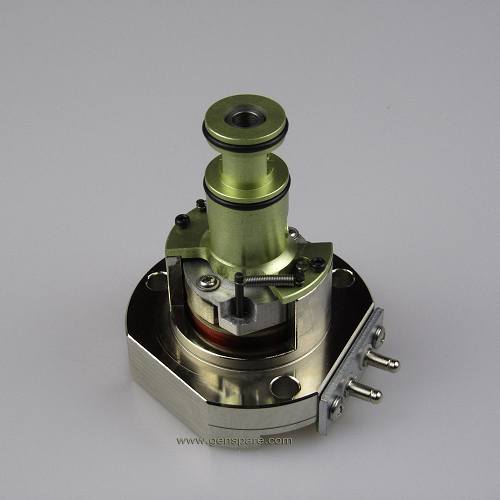

Cummins Sereis: 3408324, 3408326, 3408328

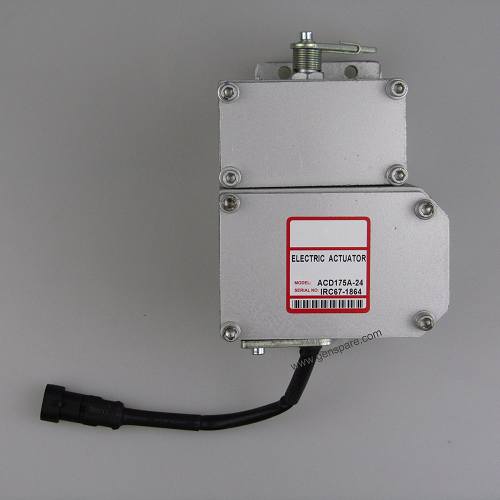

GAC Sereis: ADC120, ACD175A, ADC225

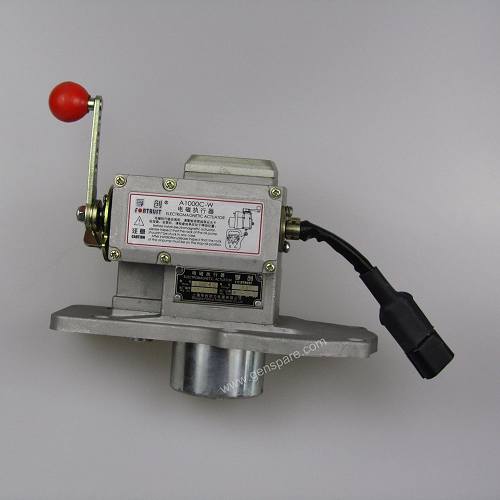

Fortrust Series: A02A, A07A, A08, A1A, A1AWL, A2A, A3A, A3B, CA2, A800, A900, A1000C-W, A1000C-F3-d1, A2000C-F3, A2000C-W, A1000B, A2000B, A4000B
YUNYI Series: YZ01A, YZ01B, YZ01C, YZ02A-P, YZ02A-D, YZ02A-M, YZ02A-KL, YZ02A-BQ. YZ02A-K, YZ02A-YI, YZ03A-M, YZ03A-PM, YZ03A-1, YZ03A-L, YZ04A, YZ05C, YZ06B, YZ07B
Compatible Engine Types:
Diesel / Gasoline
Compatible Engine Brands:
Cummins, Perkins, Deutz, Caterpillar, Aksa, Volve, Kohler, Kubota, Yanmar, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands

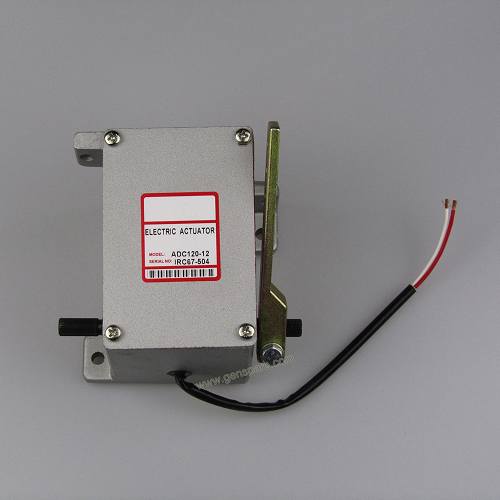

ADC120 Gasoline Generator Actuator
Rotary output linear torque proportional servo
Small, low cost, low friction model
1.0 lb-ft of torque, 25° rotation, < 32 msec. response
Suitable for rotary or small inline fuel pumps of small carburetors
Ideal for fuel systems on engines up to 150 HP
Specifications of GAC ADC120 Gasoline Engine Actuator
Performance for ADC120 GAC Electric Actuator
Available Torque-------------------------------------------------------Max 1.0 lb-ft (1.4 Nm)
Maximum Operating Shaft Angular Travel----------------------- 25+-1 degree CW/ CCW
Power Input of ADC120 GAC Gasoline Genset Actuator
Operating voltage-----------------------------------------------------12, 24 VDC
Normal Operating Current------------------------------------------2 A at 12 VDC, 1 A at 24 VDC
Maximum Current-Continuously Rated--------------------------6 A at 12 VDC, 3 A at 24 VDC
Environmental for ADC120-12 GAC Gasoline Actuator
Temperature Range--------------------------------------------------- -65℉ to 200℉(-54℃to 95℃)
Relative Humidity------------------------------------------------------up to 100%
All Surface Finishes---------------------------------------------------Fungus proof and corrosion resistant
Physical for GAC Electric Actuator ADC120
Dimensions--------------------------------------------------------------please contact us for product catalog
Weight-------------------------------------------------------------------4.5 lbs (2.05kg), net weight
Mounting--------------------------------------------Any position, electrical connector at the top-preferred
Reliability of GAC Electric Actuator ADC120
Vibration-----------------------------------------------------------------up to 20 G @ 50-500 Hz
Testing-------------------------------------------------------------------100% Tested
Mating Hardware for GAC Electric Actuator ADC120-12
Connector (ADC120)-------------------------------------------------supplied with actuator
Level----------------------------------------------------------------------LE1500-1
Rod End Bearings ( to attach a # 10-32 THD linkage rod to the lever)-------BR100 (Right Hand)
--------BR100 (Right Hand)
Wiring Harness ADC120------------- 4 ft. harness supplied with actuator, other lengths available

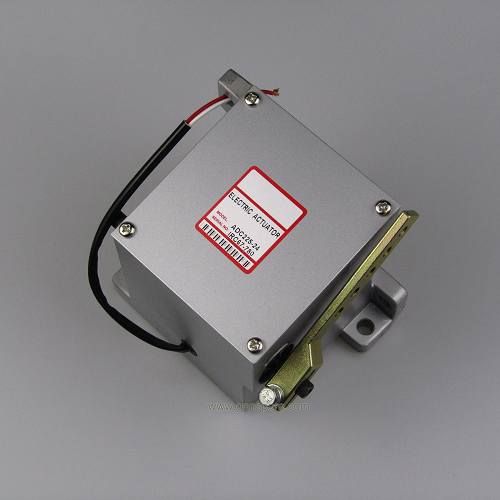

GAC ADC225-24 Diesel Generator Actuator
2.2 lb-ft of torque, 25° rotation, < 45 msec. response
Low cost, versatile model
Suitable for multi-plunger fuel pumps and medium size carburetors
Various models offer a variety of connectors and wiring harnesses, including feedback sensor
Outstanding reliability and performance
SPECIFICATIONS of GAC ADC225-24 Diesel Engine Actuator
PERFORMANCE of ADC225-24 Diesel Genset Actuator | |
Available Torque: | Max1.0Lb-ft(1.4Nm) |
Maximum Operating Shaft Angular Travel: | 25+1° CW/CCW |
POWER INPUT for ADC225-24 Diesel Actuator | |
Operating voltage: | 12/24V DC |
Normal Operating Current: | 2 A at 12V DC,1A at 24V DC |
ENVIROMENTAL of ADC225-24 Generator Actuator | |
Temperature Range: | -54 to 95°c |
Relative Humidity: | up to 100% |
All Surface finishes: | Fungus proof and corrosion resistant |
PHISICAL: | |
Weight: | 3.8 kg |
Mounting: | Any position, electrical connector at the top preferred |
RELIABILITY: | |
Vibration: | up to 20G @50-500 Hz |
Testing: | 100% Tested |
MATING HARDWARE: | |
Lever: | LE1500-2 |
Rod End Bearings(to attach a 12#20 HD linkage rod to lever): | BR200(Right Hand) |
BR201(Right Hand) | |
Wiring Harness HD225: | supplied with actuator |
