Generator Speed Governor
Generator Governor Controller
Warranty: 1 Year
Gross Weight: 0.7 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : ESD5500
Function: Genset Speed Governor
Usage: Genset Speed Controller
Product Name: Generator Speed Governor
Compatible with: Generator Governor Controller

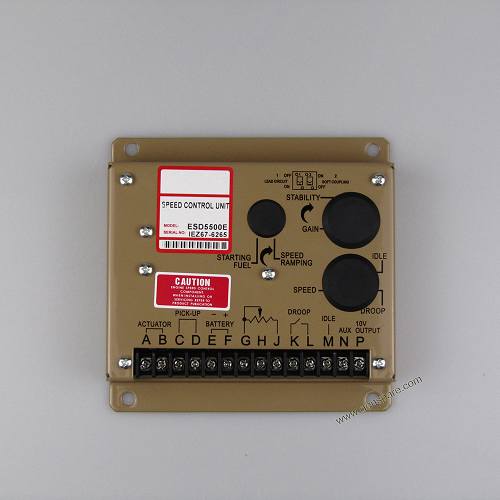

GAC Genset Generator Speed Governor Controller ESD5500
(Compatible with all generators)
ESD5500E Product Specification Download.pdf
We have GAC Speed Governor ESD5500 in our Regular Stock!
The Brands mentioned here are for reference only, our parts can exactly replace the original ones.
Generator Speed Governor :
Kutai: EG2000, EG3000
Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002
YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800
Other Speed Governors: S6700E, S6700H
Cummins: 3044196, 3062322, 3098693, 3037359, 4914090, 4914091, 4913988, 3044195, 3032733, 3062323, 3036453, 3053065, 3030256, 3053060
GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714
Compatible Engine Brands for Genset Speed Governor ESD5500
Deutz, Aksa, Volve, Kohler, Kubota, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands
The GAC ESD5500 Genset Speed Controller is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist, or condensation may come in contact with controller, it should be mounted vertically. This will allow the fluid to drain away from the speed control unit.
TECHNICAL SPECIFICATIONS of ESD5500 GAC Genset Speed Governor | ||
Isochronous Operation/Steady State Stability | ± 0.25% or better | |
Speed Range/Governor | 1K-7.5K Hz continuous | |
Speed Drift with Temperature | ± 1% Maximun | |
IDLE Adjustment | 160 ± 20Hz ~ 60% of set speed | |
Droop adjustment Min.(K-L Jumpered) | 15Hz. ± 6Hz. per 1.0 A change | |
Droop adjustment Max.(K-L Jumpered) | 400Hz. ± 75Hz. per 1.0 A change | |
Droop Adj. Max. (K-L Jumpered) | 875Hz., ± 75Hz. per 1.0 A change | |
Droop Adj. Min. (K-L Jumpered) | 15Hz., ± 6Hz. per 1.0 A change | |
Speed Trim Range | ± 200Hz. | |
Remote Variable Speed Range | 500 -7.5Hz. or all part thereof | |
Terminal Sensitivity | J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance | |
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance | ||
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance | ||
P: 10V DC Provide @ 20ma Max. | ||
Speed Switch Adjustment Range | 1000-10000Hz. | |
ENVIRONMENTAL of GAC Generator Speed Controller ESD5500 | ||
Ambient Operating Temperature Range | -40°c to +85°c | |
Relative Humidity | up to 95% | |
Storage Temperature | -55°c ~ 90°c | |
Shock | 20-100HZ 500mm/Sec. | |
INPUT POWER: | ||
Provide | 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) | |
Polarity | Negative Ground(Case Isolated) | |
Power Consumption | 50mA continuous plus actuator current | |
Actuator Current Range @ 25°c-(Inductive Load) | Min. 2.5 Amps, Max. 10 Amps continuous | |
Speed Sensor Signal | 0.5-120 V RMS | |
Speed Switch Relay Contacts(N.O.and N.C.) | 10Amp | |
PHYSICAL of GAC Generator Speed Governor ESD5500 | ||
Net Weight | 650g |
Note: The performance parameters in the frequency when measuring 4000Hz
